Curves continuity

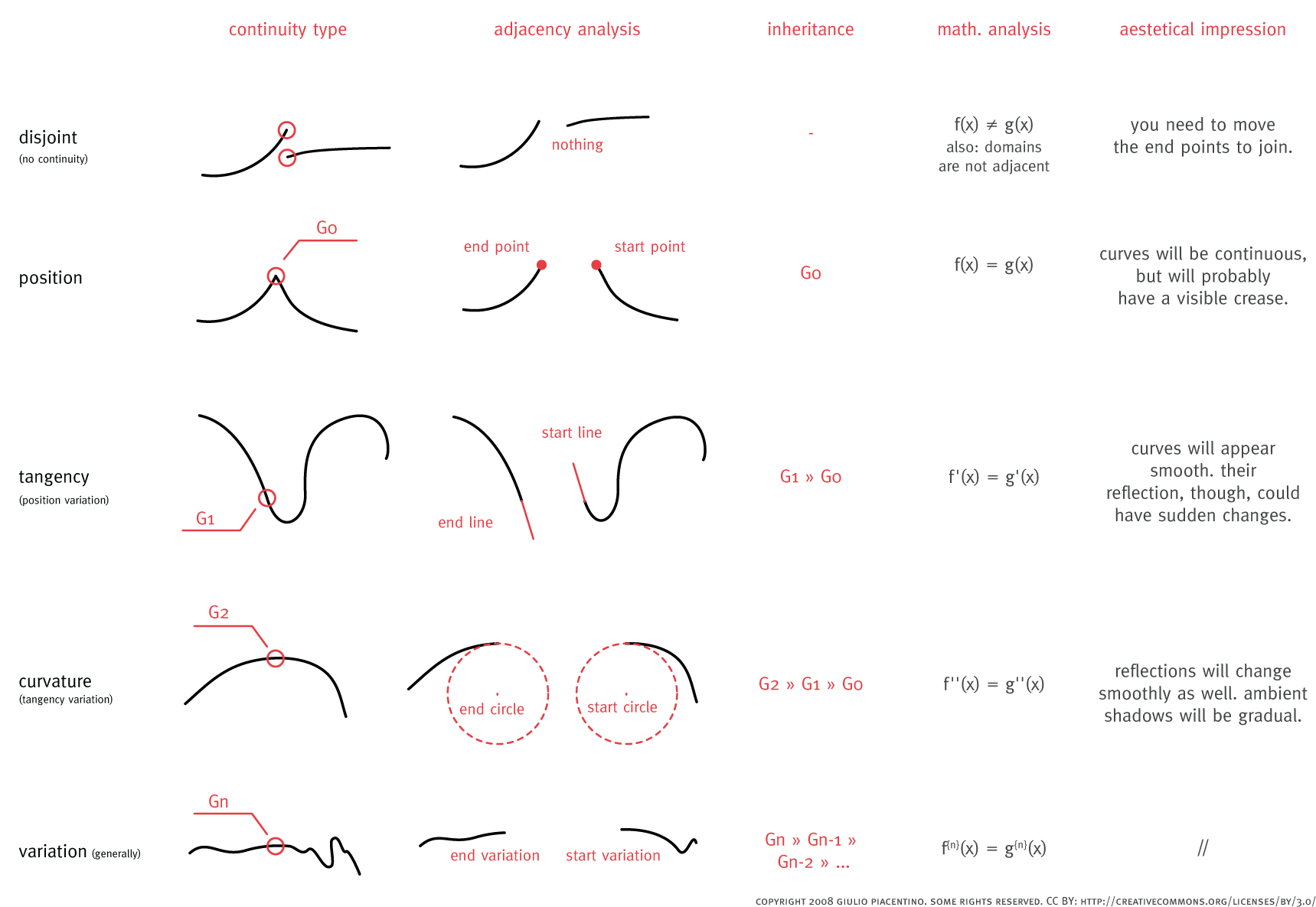

This diagram shows how to work with continuity among surfaces, curves and lines. Position, tangency, curvature radius and derivatives are used to graphically explain G0, G1 and G2 Download high resolution

NURBS programs like Rhino and Maya allow you to generate objects from many adjacent surfaces. This diagram shows how to work with continuity among these surfaces, and also curves and lines. Position, tangency, curvature radius and derivatives are used to graphically explain G0, G1 and G2 to every audience.
